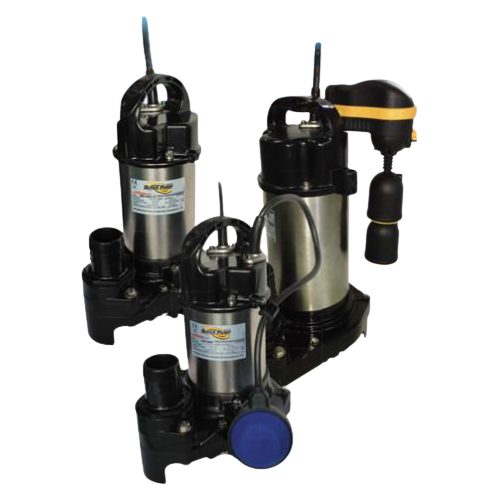

Submersible Pump – SSP Series

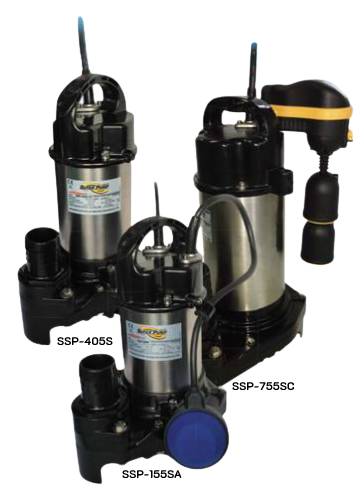

Mitsubishi SSP series Stainless Steel Submersible pump Supply water for garden decoration, foutains, fish pond, Etc.

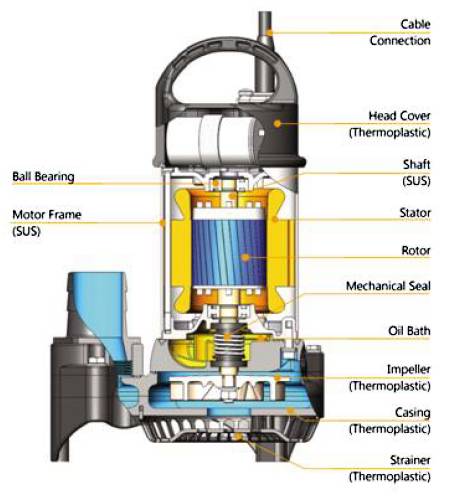

Special Features
- High starting-torque motor.
- High-grade stainless steel & engineering plastic for high corrosive resistance and lighter weight compare with cast iron
- Build-in automatic thermal protector to protect motor from burning even when impeller is being locked.
- Equipped with double mechanical seal, ceramic-carbon and silicon carbide sealing surfaces.
- With float switch model, pump will stop automatically at low water level to protect from dry running.
Specifications
| Item | Description | ||||||
|---|---|---|---|---|---|---|---|
| Liquid temp. | 0 ̴ 40˚C (32 ̴ 104˚F) | ||||||
| Applications | Waste water and effuent | ||||||
| Pump Sect. | structure | Impeller | Semi-open Type | ||||
| Shaft Seal | Double Mechanical Seal with Oil Chamber | ||||||
| Lubricant | Turbine Oil (ISO VG32) | ||||||
| Material | Casing | Fiber-reinforced Plastic | |||||
| Impeller | Fiber-reinforced Plastic | ||||||
| M.Seal | SiC/SiC + Ceramic/ Carbon | ||||||
| Motor Sect. | Motor | Dry Type Submersible Induction Motor (IP68) 2P, Insulation Class F |
|||||
| Supply | 1ø, 220-230V, 50Hz 30ø,380-415V, 50Hz |
||||||
| Starting Method | Capacitor Run (Single phase) Direct on Line (Three phase) |
||||||
| Protector | Miniature Thermal Protector (Single phase) Circle Thermal Protector (Three phase) |
||||||
| Bearing | Double Shielded Ball Type | ||||||
| Material | Motor cover | Fiber-reinforced Plastic | |||||
| Frame | SUS304 | ||||||
| Main saft | SUS304 | ||||||
| Cable | SSP-155S(A,C) - H05-VVF-3C x 0.75mm2 x 5m SSP-255S/405S(A,C) - VCT 3C x1.0mm2 x 6m Three phase - VCT 4C x 1.0mm2 x 6m |
||||||
| Discharge Bore | Extermal Thread + Hose Coupling | ||||||
Not suitale for seawater , strong acid or alkali liquid
Performance Specifications
| Model | Motor Output | Phase | Supply | Maximum | Weight (kg) | Solid Passage (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Head (m) | Flow Rate (l/min) |
Current (A) |
||||||||||
| kW | Hp | |||||||||||
| SSP-155S (SA,SC) | 0.15 | 1/5 | Single | 220 - 230V, 50Hz | 6.0 | 220 | 1.9 | 6.0 | 10 | |||
| SSP-255S (SA,SC) | 0.25 | 1/3 | Single | 220 - 230V, 50Hz | 9.0 | 180 | 2.5 | 7.0 | 10 | |||
| SSP-405S (SA,SC) | 0.40 | 1/2 | Single | 220 - 230V, 50Hz | 11.8 | 20 | 3.6 | 8.0 | 10 | |||
| SSP-755S (SA,SC) | 0.75 | 1 | Single | 220 - 230V, 50Hz | 17.3 | 310 | 6. | 12.0 | 10 | |||
| SSP-755T (TA,TC) | 0.75 | 1 | Three | 380 - 415V, 50Hz | 17.3 | 310 | 2.2 | 11.0 | 10 | |||
| SSP-1505T (TA,TC) | 1.50 | 2 | Three | 380 - 415V, 50Hz | 22.5 | 370 | 3.6 | 13.5 | 10 | |||

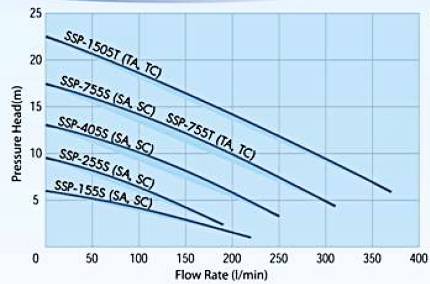

Characteristic Curve
- W1 : Lowest water level that pump can lift up
- W2 : Continuous operation water level
- W3 : Pump start water level
(automatic float switch model)
- W4 : Pump stop water level
(automatic float switch model)

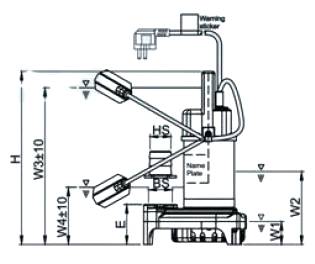

Dimensions
| Model | HS | BS | A | B | C | D | E | H | W1 | W2 | W3 | W4 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SSP-155S (SA,SC) | 40 (1 ½'') | PF (2'') | 233 | 110 | 85 | 170 | 83 | 327.5 | 90 | 162 | 285 | 124 | ||
| SSP-255S (SA,SC) | 40 (1 ½'') | PF (2'') | 233 | 110 | 85 | 170 | 83 | 351 | 90 | 175 | 290 | 150 | ||
| SSP-405S (SA,SC) | 50 (2'') | PF (2'') | ||||||||||||
| SSP-755S (SA,SC) | 80 (3'') | PF (2 ½'') | 272 | 127 | 95 | 190 | 90 | 409.5 | 90 | 197 | 313 | 150 | ||
| SSP-755T (TA,TC) | ||||||||||||||
| SSP-1505T (TA,TC) | ||||||||||||||
Options upon request :
1. Neoprene cable H07-RNF with request length
2. Other voltage or frequency
3. Different bore size from catalog
4. Special Mechanical seal
Please contact nearby dealer
Special Vertical Type
Dimensions
| Model | J | K | L | W3 | W4 | ||
|---|---|---|---|---|---|---|---|
| SSP-155SC | 246 | 231 | 341 | 175 | 124 | ||
| SSP-255SC | 246 | 231 | 237 | 200 | 150 | ||
| SSP-405SSC | |||||||
| SSP-755SC | 289 | 223.5 | 430 | 260 | 240 | ||
| SSP-755TC | |||||||
| SSP-1505TC | |||||||
Advantage : 1) More precisely water level control 2) Need less area for float switch
